$32.00
Manufacturer: Bollhoff GmbH

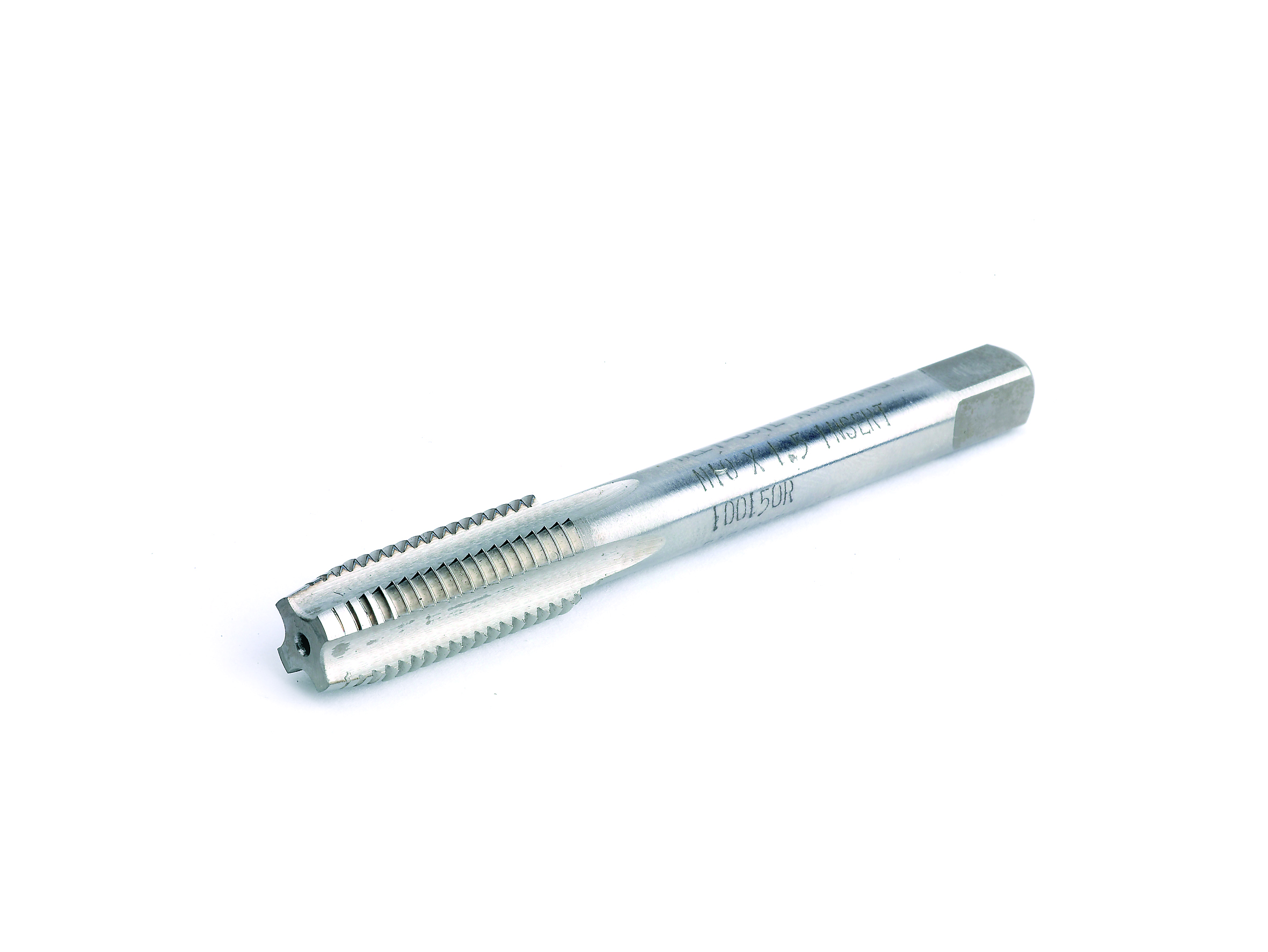

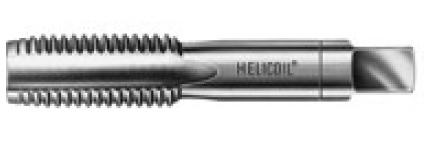

Description: HeliCoil Plus Roughing Tap (Pre-cutter)
Material: High Speed Steel
Size: M2 x 0.4
Purpose: For Through and Blind Holes in Materials over 700 N/mm² strength

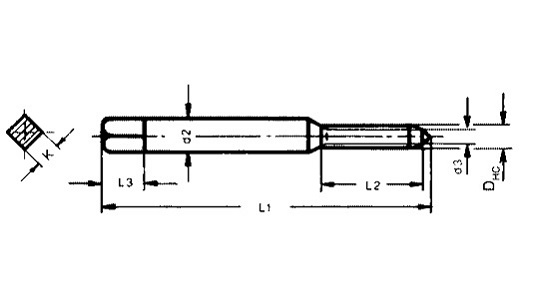

Outer Diameter min DHC: 2.5mm
Shaft Diameter h9 d2: 2.8mm
First Cut Diameter d3: 2mm
Overall Length L1: 40mm
Thread Length Max L2: 9mm
Square Length L3: 5mm
Square h12 K: 2.1mm
Bollhoff Part Number: 0140 102 0104
Quantity: 1 pc
Original HeliCoil Plus taps are adapted for this thread system and must be used for tapping the threads. HeliCoil Plus taps can be used to create threads in Aluminum, Magnesium, Steel, Copper, Bronze, Brass and Zinc alloys. In addition, HeliCoil Plus internal thread limit gauges must be used for checking that the thread is true to gauge. Also known as Pre-cutter taps, roughing taps are used to create the initial threads.
| Size | 2-56 UNC |
|---|---|
| Length | 1D (0.086") |
| Material | 304 Stainless Steel |
