1430 004 0008, M4 x 8mm, Amtec Quicksert Plus Brass Insert Pack of 100

$90.00

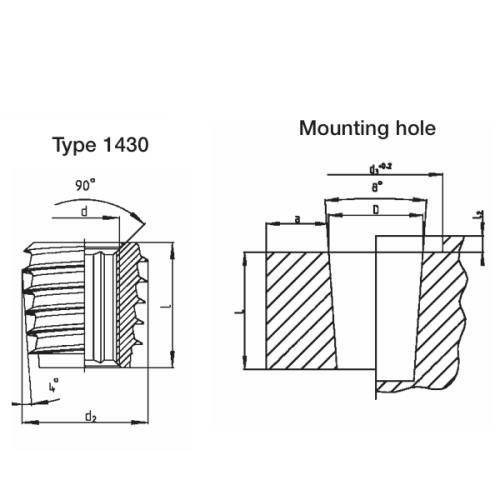

Description: Quicksert Plus Brass Insert

Size d: M4

D: 7.10mm

Length l: 8mm

d2: 7.74mm

L (min): 8mm

a (min): 5mm

S: 3.2mm

Available on backorder

SKU: BI-14300040008 Categories: , , Tag: Brand:

Description

QUICKSERT® plus consists of a tapered basic body (8° overall taper) with internal thread, additional internal hexagon and a special external thread. The profile of the external thread has an extremely small flank angle and expands asymmetrically towards the thread root. Driving torques for installation are thus reduced.
