1437 504 0008, M4 x 8mm, Amtec Quicksert Hex Brass Insert Pack of 100

$90.00

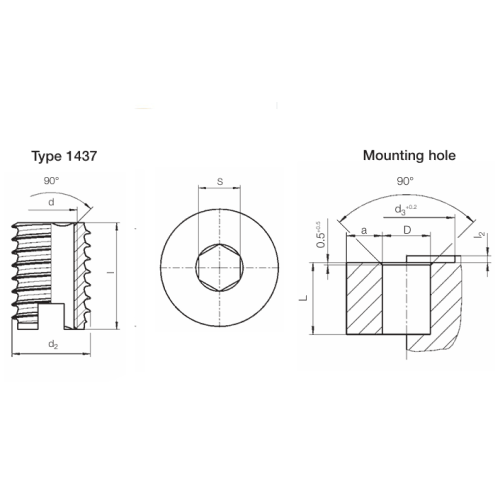

Description: Quicksert Hex Brass Insert

Size d: M4

Length l: 8mm

Length l2: 1mm

d2: 7.0mm

d3: 10mm

L (min): 9mm

a (min): 3mm

S: 3.2mm

Available on backorder

SKU: BI-14375040008 Categories: , , Tag: Brand:

Description

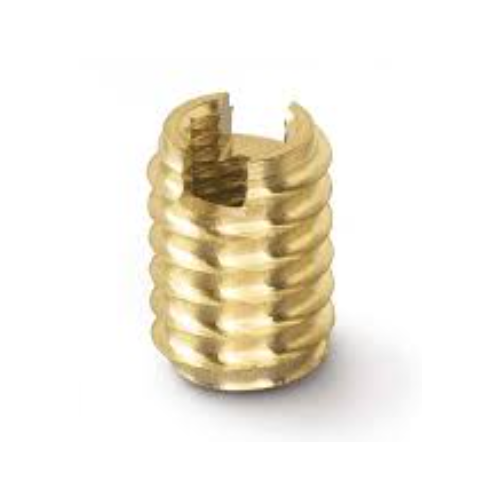

QUICKSERT® Hex consists of a cylindrical basic body with internal thread and additional internal hexagon and a special external thread. The profile of the external thread has an extremely small flank angle and expands asymmetrically towards the thread root. This way, installation at low driving torques is optimised.
