M4 x 1.5D HeliCoil Smart FR Insert 304 SST 6130 004 0006

$4.00

Manufacturer: Bollhoff GmbH

Description: HeliCoil Smart Free Running Insert

Material: Austenitic Chrome-Nickel Steel

Minimum Tensile Strength: 1,400 N/mm²

Size: M4 x 0.7

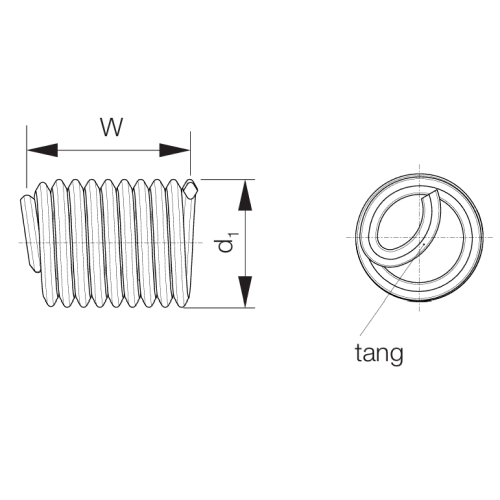

Outer Diameter d1 (min – max): 5.05mm to 5.25mm

Nominal Length: 6mm

Number of Threads Prior To Installation: 5.7

Drill Size: 4.2mm

Bollhoff Part Number: 6130 080 6004

Quantity: 1 pc

Description

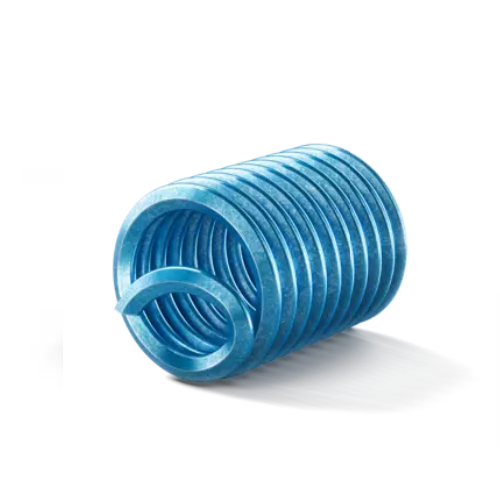

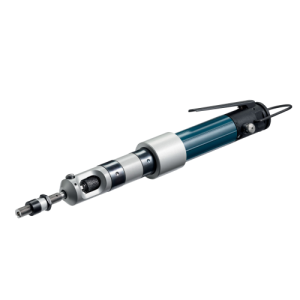

Just like the HELICOIL® Plus, the HELICOIL® Smart is provided with a special thread start to allow easier installation in a holding thread. There is a tang, but it does not have to be broken off and removed. The installation time is therefore reduced by approx. 20%. The installation of the HELICOIL® Smart is fully automatable. In combination with the adapted installation tools, the new generation of the HELICOIL® technology is a perfect addition to the HELICOIL® product family.

Additional information

Size

2-56 UNC

Length

1D (0.086")

Material

304 Stainless Steel
