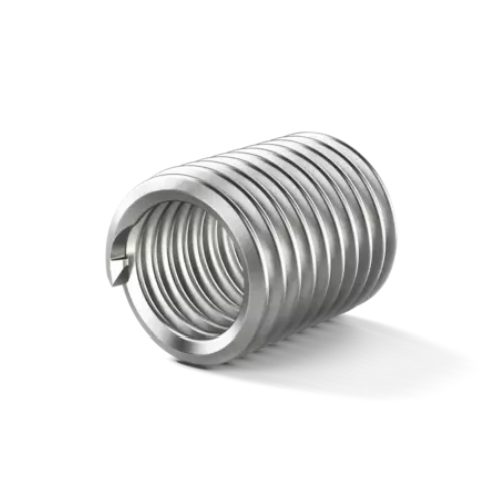

M3 x 1D HeliCoil Tangfree FR Insert 304 SST 5130 003 0003

$2.00

Manufacturer: Bollhoff GmbH

Description: HeliCoil Tangfree Free Running Insert

Material: 304 Stainless Steel

Size: M3 x 0.5

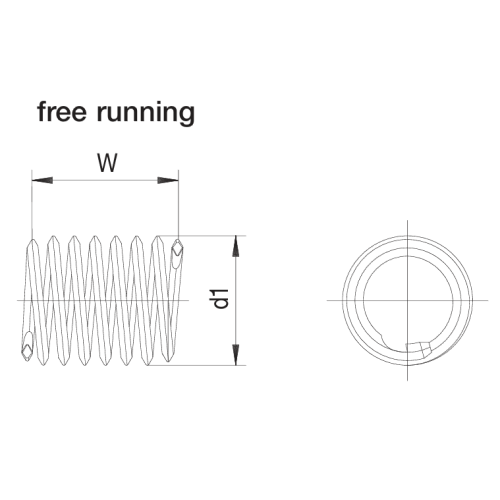

Outer Diameter d1 (min – max): 3.80mm to 4.35mm

Nominal Length W: 6mm

Number of Threads Prior To Installation: 3.75

Drill Size: 3.2mm

Bollhoff Part Number: 5130 003 0003

Quantity: 1 pc

Description

The thread insert without tang. You do not need a driver tang to install these thread inserts. Thus, there is no need to break off and remove tangs. The HELICOIL® Tangfree Free Running can be set and inserted like a screw. Free running turn by turn, the HELICOIL® Tangfree Free Running thread insert is a true-to-gauge, internal thread that can be used on both sides for secure, high-strength screw joints.

Additional information

Size

2-56 UNC

Length

1D (0.086")

Material

304 Stainless Steel
