Price range: $55.00 through $80.00
Manufacturer: Bollhoff GmbH

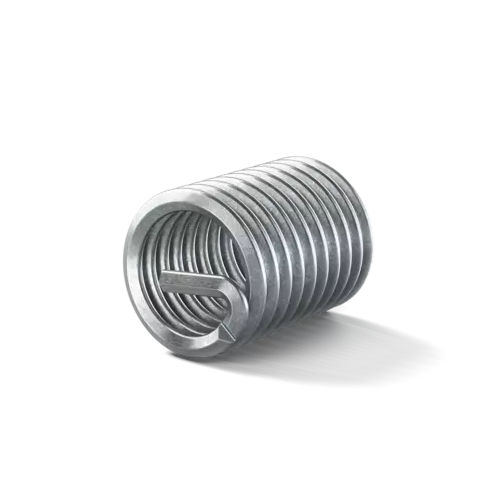

Description: HeliCoil Plus Free Running Insert
Material: 304 Stainless Steel
Size: 2-56 UNC

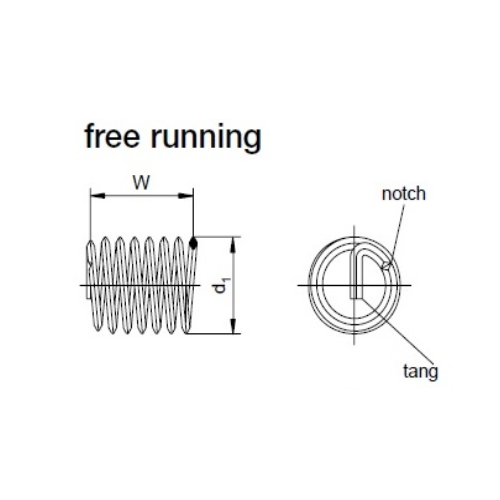

Outer Diameter d1 (min – max): 2.7mm to 2.9mm
Drill Size: 2.4mm
Quantity: 100 pcs per Pack
Nominal Lengths W: 0.086″ (1D) | 0.129″ (1.5D) | 0.172″ (2D) | 0.215″ (2.5D)
Thor Part Number: 15100000102102 | 15100000102202 | 15100000102302 | 15100000102402
Bollhoff Part Number: 4130 063 6004 | 4130 063 6006 | 4130 063 6008 | 4130 063 6010
HeliCoil Part Number: 1185-02CN086 | 1185-02CN129 | 1185-02CN172 | 1185-02CN215
Kato Part Number: TNC-02C-086 | TNC-02C-129 | TNC-02C-172 | TNC-02C-215
HeliCoil Plus free running inserts distinguish themselves with an optimal design. As with a screw the inserts are simply installed by means of a fitting mandrel. The fitting time is reduced by up to 20% due to the fact that the simplification of tooling as compared to the previous generation.
