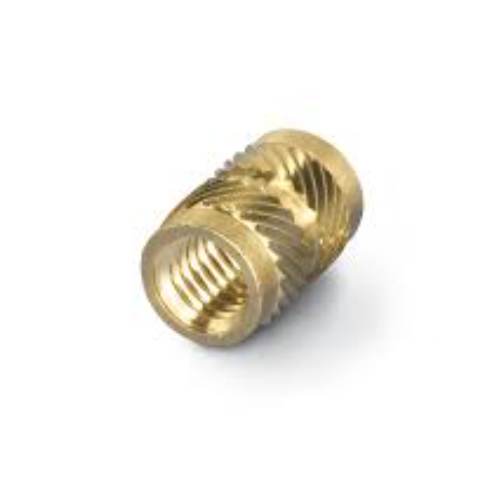

0730 114 0002, M1.4 x 2mm, Amtec Sonicsert Brass Insert Pack of 100

$120.00

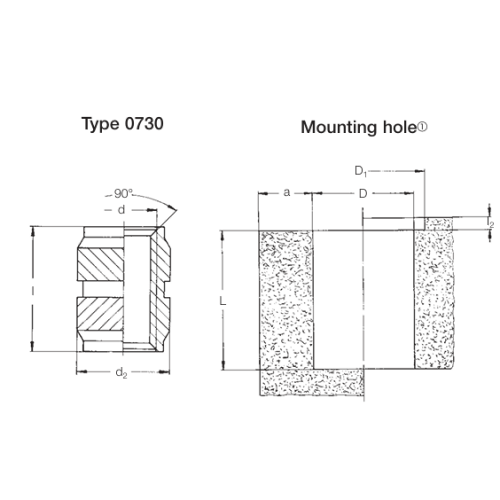

Description: Sonicsert Brass Insert

Size d: M1.4

Length l: 2mm

d2: 2.2mm

D: 1.9mm

L (min): 2.5mm

a (min): 0.7mm

Available on backorder

SKU: BI-07301140002 Categories: , , Tag: Brand:

Description

The SONICSERT® thread insert is installed with common ultrasonic welders. Upon welding, the plastic material is plasticised by ultrasonic vibrations and flows into the undercuts of the thread insert. Upon cooling, a low-stress interference is realised.
