Description
About this item:

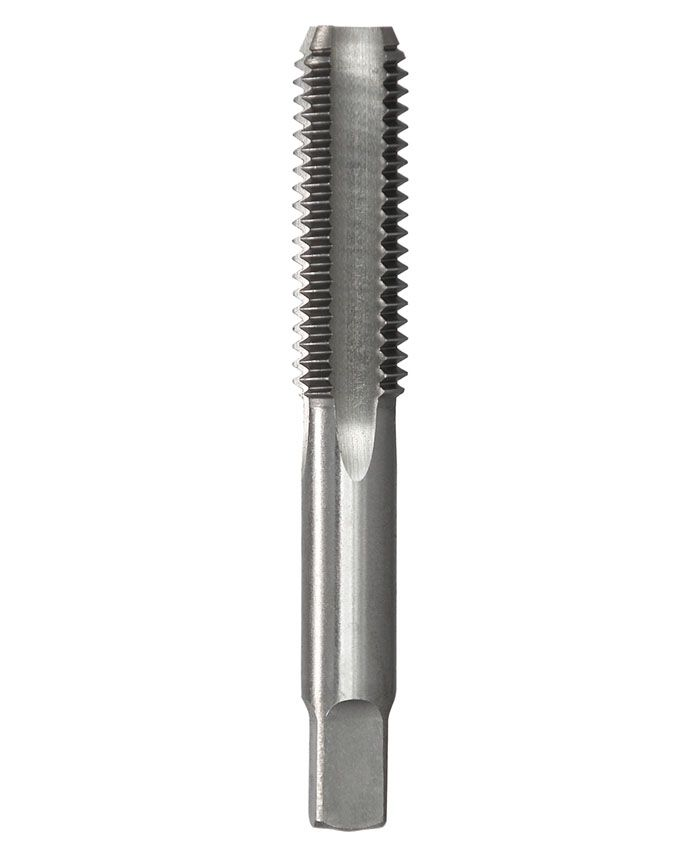

- 1-1/2 NPT Chrome Alloy Tap – Bottoming
- Chrome Alloy NPT Bottoming Hand Tap.
- Used as thread chasers to clean an existing thread.
- They can also be used to create a new female thread in non-ferrous metals and plastics.
- Chrome alloy taps are not suitable for creating precision, safety or critical threads.
- National Pipe Tapered is a US standard for tapered threads used to join pipes and fittings.
- ANSI/ASME standard B1.20.1 covers threads of 60° form with flat crests and roots.
- The taper on NPT threads allows them to form a seal when torqued as the flanks of the threads compress against each other.
- However a clearance remains between the crests and roots of the threads, resulting in a leakage around this spiral.
- This means that NPT fittings must be made leak free with the aid of thread seal tape or a thread sealant compound.
- For each 12″ increase in distance from the end, the diameter increases by 3/4″.
- Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
