Description
About this item:

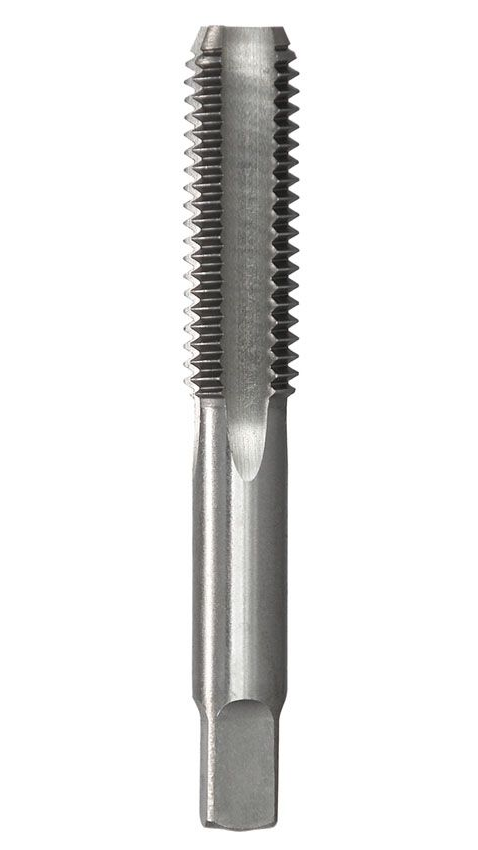

- 1 BSPT (Rc Series Pipe Taper) Chrome Alloy Tap – Bottoming
- Chrome Alloy BSPT Bottoming Hand Tap.
- Used as thread chasers to clean an existing thread.
- They can also be used to create a new female thread in non-ferrous metals and plastics.
- Chrome alloy taps are not suitable for creating precision, safety or critical threads.
- British Standard Pipe Taper (RC Series Pipe Taper) is based on the Whitworth thread form – a symmetrical V-thread with an angle of 55°.
- BSPT has been widely adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread.
- The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued as the flanks of the threads compress against each other.
- The taper is “1 to 16”, meaning that for each 16 mm increase in the distance from the end, the diameter increases by 1 mm.
- Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
