2501-1.00S, 1mm, HSS Long Series Drill – Clam

Description: HSS Long Series Drill – Clam

Brand: Bordo

Material: High Speed Steel (HSS)

Diameter D: 1mm

Flute Length: 29mm

Overall Length: 57mm

MPN: 2501-1.00S

Quantity Per Package: 1 piece

Feeds per revolution: 0.04mm

Spindle Speed Aluminum / Brass: 19429 RPM

Spindle Speed Cast Iron: 7644 RPM

Spindle Speed Free Cutting Steel: 13696 RPM

Spindle Speed Malleable Iron: 8600 RPM

Spindle Speed Med. Carbon Steel: 9555 RPM

Spindle Speed Stainless Steel: 3822 RPM

Spindle Speed Tool Steel: 5733 RPM

Spindle Speed Wood / Plastic: 28984 RPM

Description

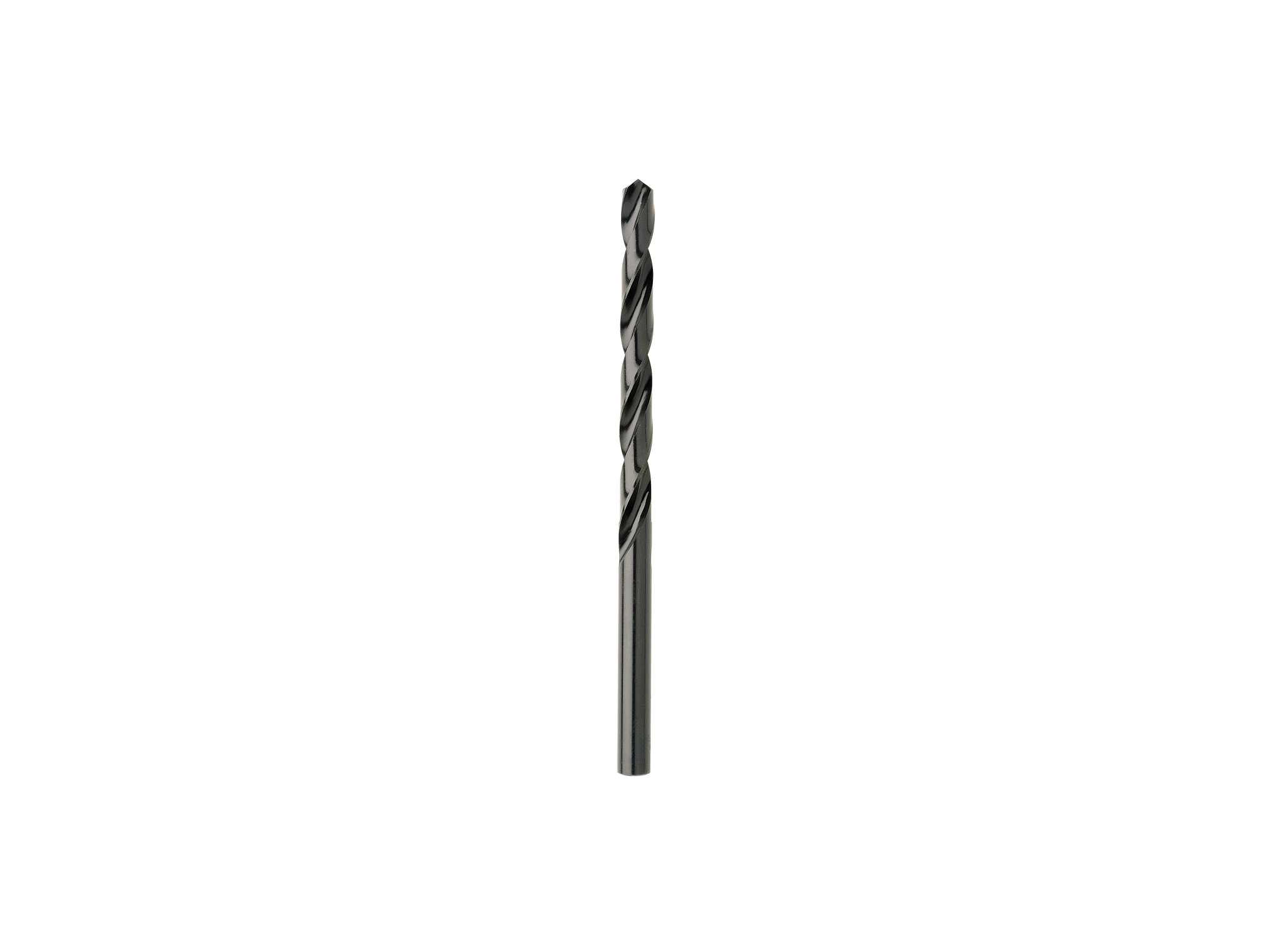

1mm HSS Long Series Drill – Clam
ANSI B94-11
118° chisel point with 30° helix.
Chisel point is suitable for general purpose drilling.
Black Finish Twist Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life.
Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.
