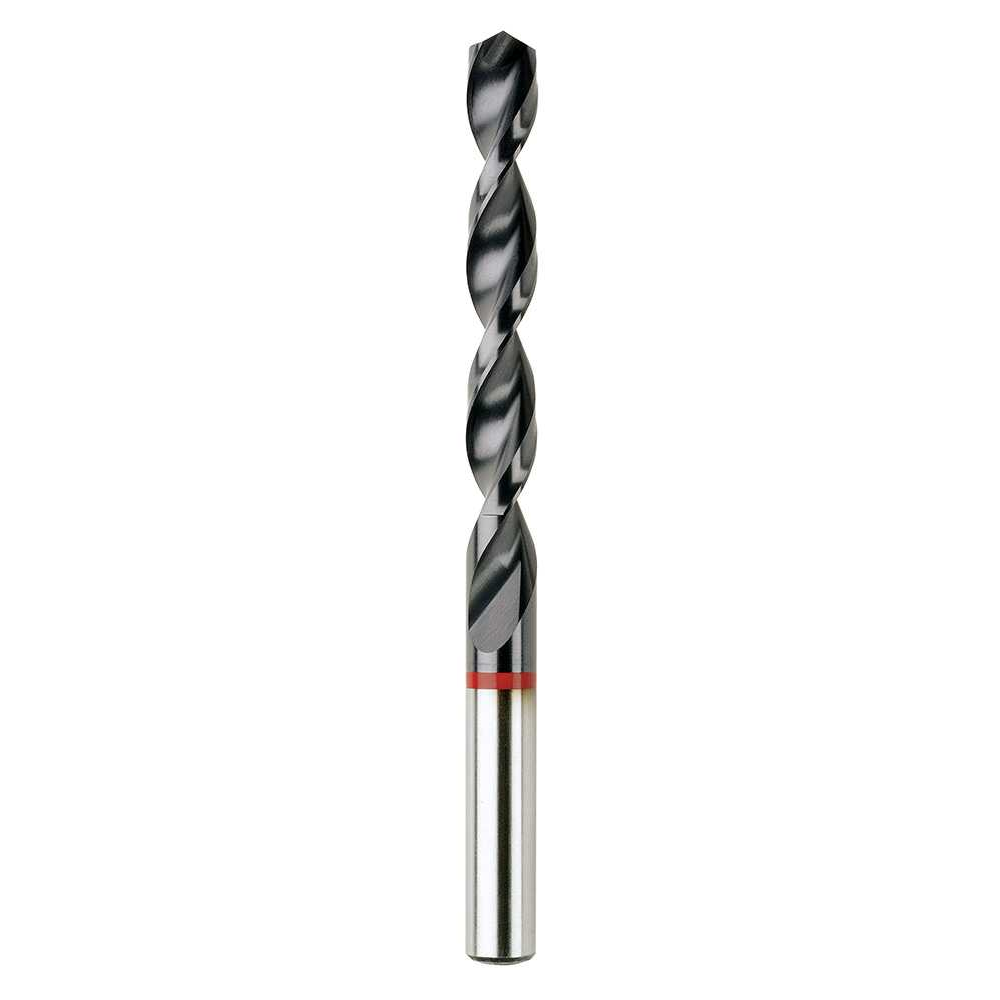

2052-3.20, 3.2mm, HSS Cobalt TiAlN Coated Red Band Jobber

2052-3.20, 3.2mm, HSS Cobalt TiAlN Coated Red Band Jobber

Description: HSS Cobalt TiAlN Coated Red Band Jobber

Brand: Bordo (Colour Band)

Material: High Speed Steel (HSS) Cobalt

Diameter: 3.2mm

Flute Length: 36mm

Overall Length: 65mm

MPN: 2052-3.20

Feed Per Revolution: 0.04mm

Cutting Speed Carbon Alloy Steel Heat Treate: 10-20 m/min

Cutting Speed Carbon Low Alloy Steel: 25-30 m/min

Cutting Speed High Tensile Bronze: 15-28 m/min

Cutting Speed Nickel Iconel 718 Alloy: 4-8 m/min

Cutting Speed Nickel Nimonic 75: 6-10 m/min

Quantity Per Package: 1 piece

SKU: 2052-3.20 Category: Tags: , , , , Brand:

Description

About this item:
  • 3.2mm HSS Cobalt TiAlN Coated Red Band Twist
  • Bordo Metric Red Band HSS-Co TiAlN Coated Twist Drills for Tough Treatable Steel.
  • DIN338
  • 130° UX point with two helical parabolic flutes with 33 degrees of helix angle.
  • The mechanical properties of materials are influenced diversely by the addition of alloying elements and heat treatment processes, resulting in some high-strength, quenched and tempered steels or hardened steels.
  • This range has its own unique set of machining requirements which are satisfied by the Red Band – Tough Treatable Steel – Series.
  • TiAlN coating increases tool surface hardness to 87Rc.
  • For machining materials with Hardness < 470 HB : Tensile Strength <1500 N/mm2.
