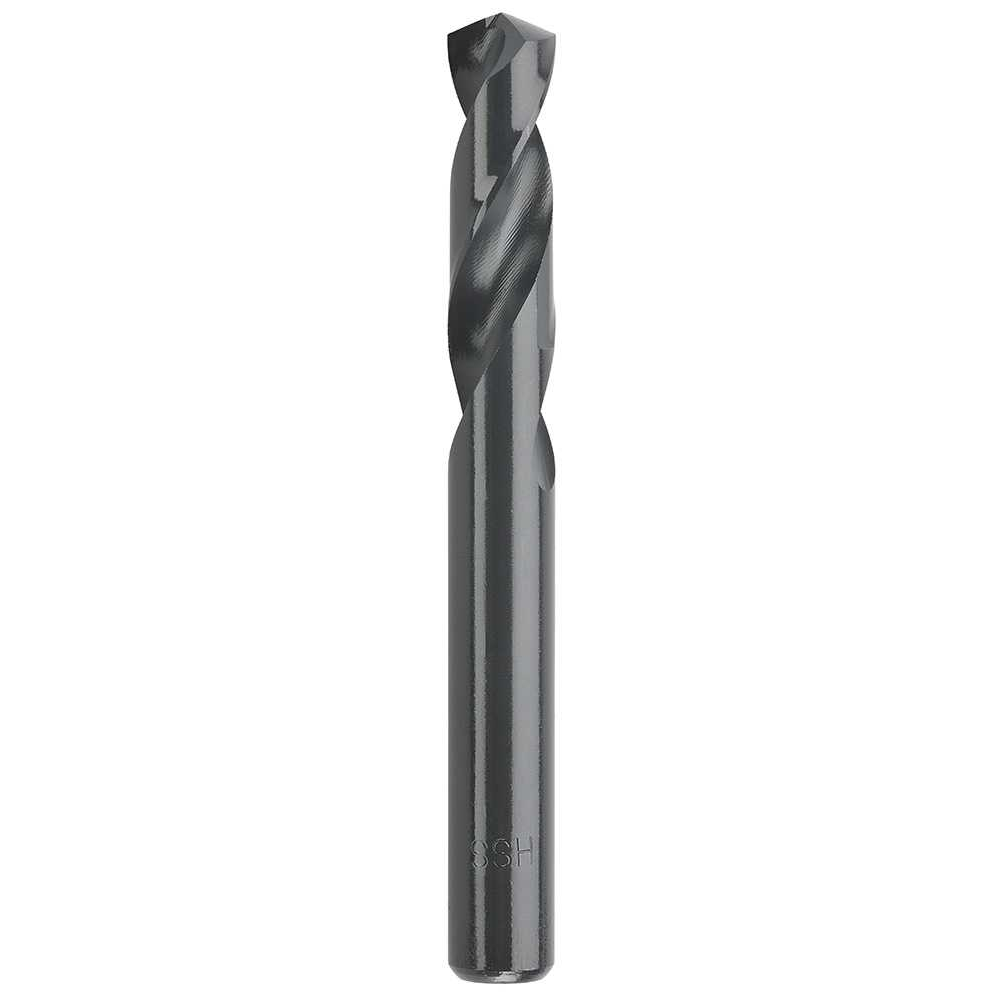

2021-5.50, 5.5mm, HSS Black Stub Drill

2021-5.50, 5.5mm, HSS Black Stub Drill

$8.72

Description: Black Stub Drill

Brand: Bordo

Material: High Speed Steel (HSS)

Diameter D: 5.5mm

Flute Length: 28mm

Overall Length: 66mm

MPN: 2021-5.50

Quantity Per Package: 10 pieces

Feeds per revolution: 0.13mm

Spindle Speed Aluminum / Brass: 3532 RPM

Spindle Speed Cast Iron: 1390 RPM

Spindle Speed Free Cutting Steel: 2490 RPM

Spindle Speed Malleable Iron: 1564 RPM

Spindle Speed Med. Carbon Steel: 1737 RPM

Spindle Speed Stainless Steel: 695 RPM

Spindle Speed Tool Steel: 1042 RPM

Spindle Speed Wood / Plastic: 5270 RPM

Out of stock

SKU: 2021-5.50 Category: Tags: , , Brand:

Description

About this item:
  • 5.5mm HSS Black Stub Drill
  • Stub drills (screw machine twist drills) have a shorter overall length than Twist drills for maximum rigidity and longer tool life.
  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
  • They are designed primarily for machining operations in lathes (screw machines) but can also be used in manual hand held drills.
  • Bordo Stub Drills have two helical flutes with 30 degrees of helix angle. This provides fast chip ejection and very stable drilling operation.
  • Black Finish Stub Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
  • Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.
