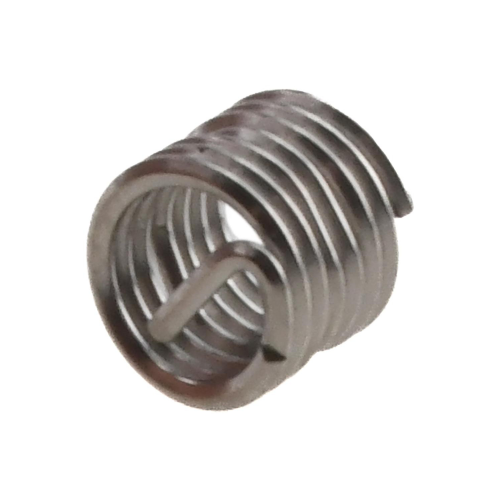

2-56 UNC x 1D HeliCoil SL Insert N-60 3585-02EN086

$4.80

Manufacturer: Stanley Engineered Fastening

Description: HeliCoil Screw Lock Insert

Part Number: 3585-02EN086

Material: Nitronic-60

Size: 2-56 UNC

Number of coils prior to installation W : 3.0

Nominal Length W: 0.086″

Drill Size (Aluminum): 3/32″

Drill Size (Steel, Magnesium, Plastic): #41 (0.0960″)

Kato Part Number: TLC-02N-086

Recoil Part Number: 13522N

Quantity: 1 pc

Description

Screw-Locking Inserts have a resilient locking mechanism that grips the bolt and prevents it from loosening under vibration or impact. It allows for repeated assembly and disassembly without appreciable loss of positive self-locking torque. This translates into savings in space, weight and money, through the elimination of lock wiring, lock nuts, lock washers, chemical compounds, plastic pellets/patches and/or other locking  mechanisms. Heli-Coil Nitronic-60 inserts have superb gall resistance and are compatible with stainless steel screws. They are ideal for use in vacuum environments. Heli-Coil Nitronic-60 inserts require no additional coatings or plating. They are particle-free and are non-magnetic.

Additional information

Size

2-56 UNC

Length

1D (0.086")

Material

304 Stainless Steel
